Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Name: Casun Motor Nema17 12 Degree Stepper Motor 360mNm 108V With CE RoHS Certification
Brand: Casun
Price: 5.29 USD

Wholesale Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification from china suppliers

Brand Name : Casun

Model Number : 42SHF3202-22L1

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 5PC

Price : $5.29~$6.86

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 10000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Holding Torque : 360 mN.m

Voltage : 10.8V

Current : 1.2A

Body Length : 40mm

Weight : 0.24 kg

Phase Resistance : 10.3 ohm ±10% （At 20℃）

Shaft Length : 22 mm

Phase : 2

Insulation Class : Class B

Contact Now

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V High Quality Stepper Motor with CE RoHS Certification

The Casun Nema17 Stepper Motor delivers exceptional positioning accuracy with its 1.2° step angle, providing 30% finer resolution than standard 1.8° motors. Engineered for high-performance automation, this motor combines 360mN.m torque with 10.8V optimized operation, making it ideal for CNC machines, 3D printers, and precision instrumentation.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

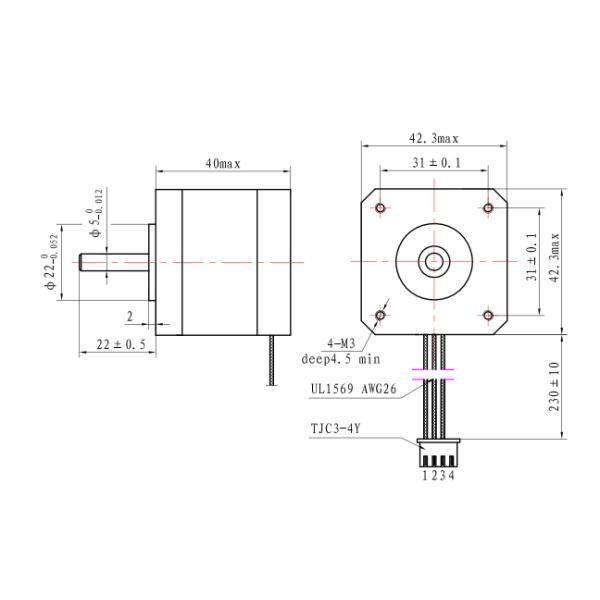

Dimensions

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Motor Specifications

Step Angel	1.8°
Frame Size	40 mm
Number of Phase	2 Phase
Rated Current	1.2 Amp
Holding Torque	360 mN.m
Resistance	9 ohm
Inductance	10.3 mH
Rotor Inertia	57 g.cm²
Motor weight	0.24 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

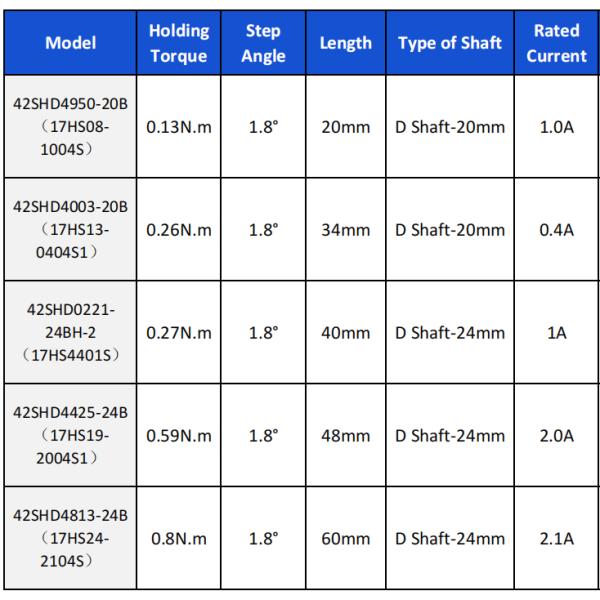

Submodels

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Please click the "Get a quote" button below to tell us your requirements.
