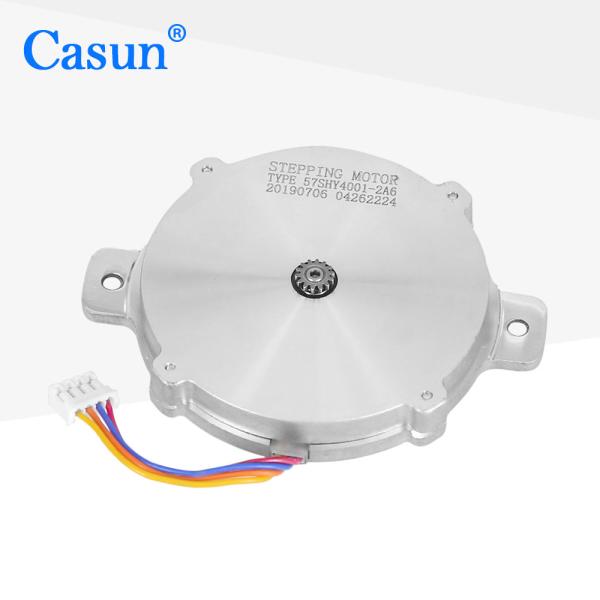

57579.8mm NEMA 23 Ultra Thin 1.8 Degree Stepper Motor 0.6A For Television

Name: 575798mm NEMA 23 Ultra Thin 18 Degree Stepper Motor 06A For Television
Brand: Casun
Price: 9.68 USD

Wholesale 57*57*9.8mm NEMA 23 Ultra Thin 1.8 Degree Stepper Motor 0.6A For Television from china suppliers

Brand Name : Casun

Model Number : 57SHY4002-2A6

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $9.68-13.46

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Steper angle : 1.8degree

Phase : 2

Rated voltage : 3.18V

Rate current : 0.6A

Holding torque : 60mN.m

Detent torque : 8mN.m

Customized : The motor can be designed &manufactured with customized request.

Contact Now

57×57×9.8mm NEMA 23 Ultra Thin 1.8 Degree Stepper Motor 0.6A For Television

Although flat stepper motors have a small volume, they typically provide sufficient torque to drive loads and meet the needs of different applications. Used for small CNC machine tools, desktop processing equipment, etc.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Multiple international certifications for high-tech and electronic industry equipment
Customized services available

Dimensions

57*57*9.8mm NEMA 23 Ultra Thin 1.8 Degree Stepper Motor 0.6A For Television

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	60 mN.m
Resistance	5.3 ohm
Inductance	3.0 mH
Rotor Inertia	15 g-cm²
Motor Weight	0.08 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model No	Step Angle	Rated Voltage	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Detent Torque	Rotor Inertia	Motor Length	Motor Weight
57SHY4001-2A	1.8°	2.8V	0.8A	3.5ohm	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4301-2A-0	1.8°	2.28V	1.2A	1.9ohm	1.2mH	125mN.m	8mN.m	18	57	0.09
57SHY4001-10K	1.8°	2.8V	0.8A	3.5ohm	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4001-10S	1.8°	2.8V	0.8A	3.5ohm	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4604-21A	1.8°	14V	1A	14ohm	30mH	690mN.m	30mN.m	120	57	0.52

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Languages Spoken: English, Chinese, Japanese
